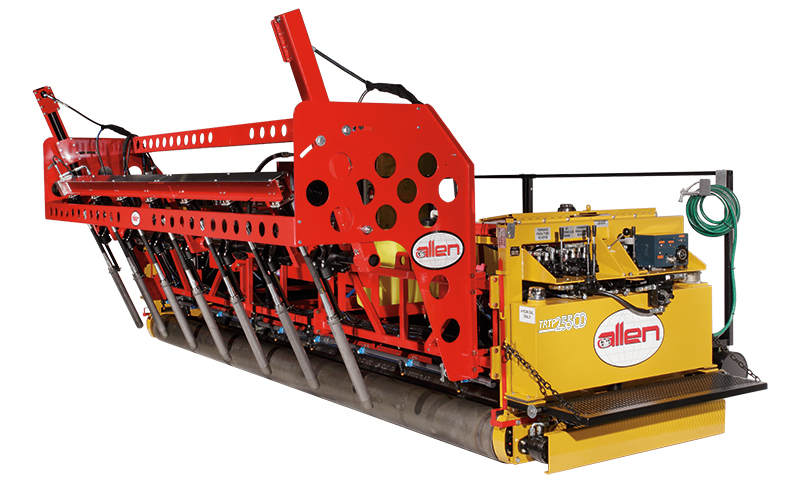

Allen Triple Roller Paver
Stock Code:
group_743
In stock
- 1. Vibrator Head Diameter: 2 3/8 in. (60 mm)
Vibrator Head Length: 23 5/8 in. (600 mm) - 2. Three Super-Flat Roller Tubes
- 3. Vibrator Spacing: 24 in. (61 cm) Center to Center
Radius of effectiveness up to 19 in. (48 cm) - 4 . Water Spray System Keeps Tubes Clean and Smooth
- 5. Pendulum Shaft Driven Vibrators can be adjusted
From 0-11,000 VPM from operator console - 6. Operator Platform
- 7. Operator Control Panel
- 8. Optional Gang Vibration System for up to
24" (61 cm) deep concrete consolidation
Allen Triple Roller Tube Pavers (TRTP) are specifically designed for paving large projects fast, accurately and efficiently. Available in a variety of standard configurations, We can also customize the equipment to fit your specific paving projects.
Precision engineered tubes ensure the smoothest pavement possible. Powered by rugged Gasoline or Diesel Engines, with easy to- operate control systems, the Triple Roller Tube Paver can strike off concrete fast. And with our precision engineered and level-tested roller tubes, you can be assured of producing the flattest paving job possible.
| 255 CD | 200 C | 150 B | |
|---|---|---|---|
| ENGINE | 32 HP Kubota® Diesel (12—20 ft) 44 HP Kubota® Diesel (22—34 ft) |
40 HP Air-Cooled Kohler | GX690 (688cc) Air-Cooled Honda (26 HP approx.) |
| WIDTHS AVAILABLE (2 FT. INCR.) | 12–34 ft (3.6 – 10.4 m) | 12–32 ft (3.6 – 9.7 m) | 12–32 ft (3.6 – 9.7 m) |
| WEIGHT AT 22FT. | 5,570 lbs (2,526 kg) | 3,835 lbs (1,740 kg) | 2,790 lbs (1,266 kg) |
| ROLLER TUBE THICKNESS | 10 in (255 mm) | 8 5/8 in (219 mm) | 6 5/8 in (168 mm) |
| TUBE WEIGHT PER FT. | 27 lbs (12 kg) | 29 lbs (13 kg) | 19 lbs (9 kg) |
| HYDRAULIC OIL RESERVOIR | 25 gal (95 l) | 13.5 gal (51 l) | 13.5 gal (51 l) |
| HYDRAULIC SPRAY SYSTEM | Standard | Standard | Optional |
| HYDRAULIC STEERING LEG | Standard | Standard | Optional |
