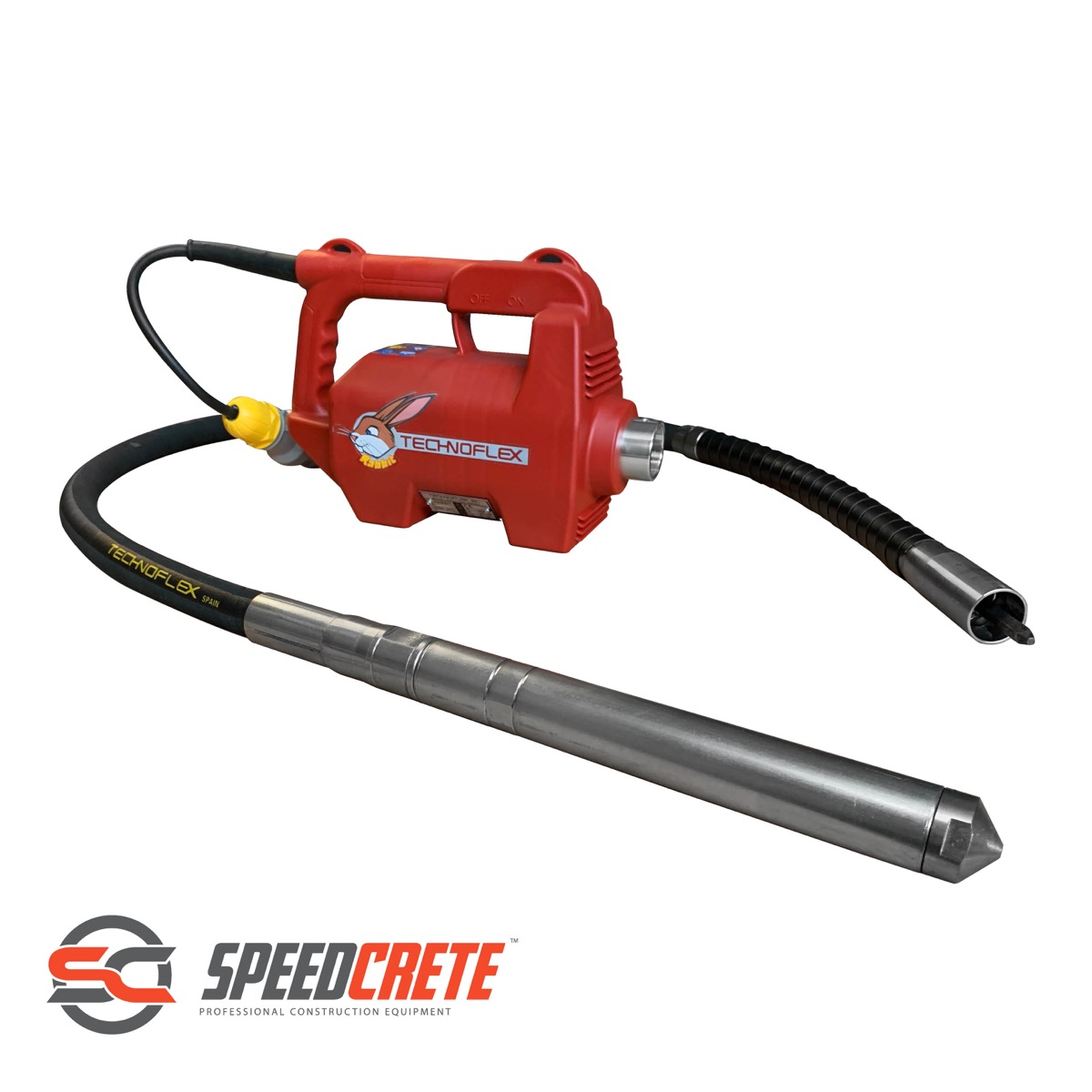

The Rabbit comprises of an Electric motor that powers a mechanical drive cable to the head which incorporates a double bearing to provide a high frequency 12,000 vpm's. The shafts are interchangable via a quick connect system, that allows you to quickly change flex lengths and vibrator head sizes. The Rabbit 110v Motor is held in stock for use on UK construction sites. Note for our oversea's customers, and UK sites that permit the use of 230v with RCD's, a 220v electric motor is available on special order by request.
- CE approved double isolation electric motor provides highest protection for the worker.
- Light weight.
- Great zone of action and vibration.
- Long- lasting flexible shaft
| Engines | |||
|---|---|---|---|
| Engine type | Power | Voltage | Speed |
| Single-phase electric | 2.300 W (3 Hp) |
230 V - 50 Hz (Special Order) 115 V - 60 Hz (Stocked) |
18.000 rpm (in vacuum) |
Â
| Transmissions/Flex -Drives | |||||
|---|---|---|---|---|---|
| Length (m/in) | 1,5 / 5" | 2 / 6,6" | 3 / 10" | 4 / 13,3" | 5 / 16,6" |
| Weight (Kg/lbs) | 3,5 / 7,7" | 5 / 11" | 7,5 / 16,5" | 10 / 22" | 12,5 / 27,5" |
Â
| Heads/Needles | ||||
|---|---|---|---|---|
| Diameter | 25 mm / 1" | 38 mm / 1 1/2" | 48 mm / 1 7/8" | 60 mm / 2 3/8" |
| Length | 315 mm / 12" | 455 mm / 18" | 495 mm / 19" | 575 mm / 23" |
| Weight | 0,8 kg / 1,7 lbs | 2,5 kg / 5,5 lbs | 4 kg / 8,8 lbs | 6 kg / 3,2 lbs |
| Capacity (m3/h) | 1,5 | 10 | 17 | 20 |
| Action Zone (cm) | 20 | 70 | 90 | 110 |
| Frequency (vpm) | 12.000 | 12.000 | 12.000 | 12.000 |
